small pellet mill

Small pellet mill is widely applied in current market today. In particular, our flat die design is hot sale purchased by thousands of families all over the world. Moreover, GEMCO technical team also develops different small pellet mill for home use or farm use to meet customers’ different needs on the market. Meanwhile our products are beyond compared with unique design, high efficiency and low noise, consumption. The reasonable structure and high quality spare parts will process wood pellets for customers in different needs easily. While the wood pellets is mainly used as biomass fuel for burning, which is a kind of green energy developed fast in recent years for the whole world.

GEMCO Supply Various Kinds of Small Pellet Mill

Electric Pellet Mill	PTO Pelllet Mill

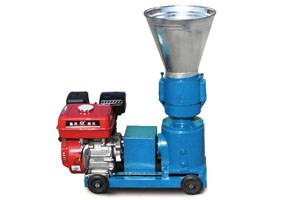

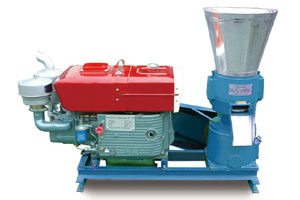

Diesel Pellet Mill	Gasoline Pellet Mill

Small Pellet Mill with Electric Motor for Home Use

What’s more, our company develops a series of innovated small pellet mills for home use and farm use with flat die. Considering space factor, this kind of pellet mills for home use is design simple and reasonable construction, which is easy to install either inside or outside the room for getting raw materials to be processed. And the production is very high. The pellet mill for home use is very convenient for you to move. It can not handle the storage of agro-wastes but deal with the problem of fuel at home. At the same time, whatever is the hard wood or soft wood, the pellet mill for home use can process them into wood pellets energy.

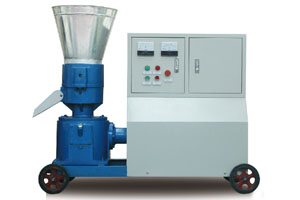

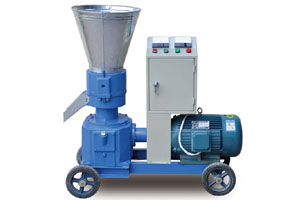

ZLSP-B Type (Motor)	ZLSP-C Type (Covered Motor)

Technical Parameter

Model	Power	Capacity	Weight（NW/GW	Packing Size
ZLSP200B	7.5KW (3phase)	80-120 kg/h	215/245kg	950*450*1050mm
		170-270 lbs/h	475/540lbs	37*18*41 inch
ZLSP300B	22KW (3phase)	250-350 kg/h	540/575kg	1350*750*1400mm
		550-770 lbs/h	1190/1268lbs	53*30*55 inch
ZLSP400B	30KW (3phase)	350-450 kg/h	770/810kg	1400*800*1450mm
		770-990 lbs/h	1698/1785lbs	55*31*57 inch
ZLSP200C	7.5KW (3phase)	80-120 kg/h	210/230kg	1050*550*830mm
		180-265 lbs/h	460/510lbs	42*22*33 inch
ZLSP260C	15KW (3phase)	160-250 kg/h	340/370kg	1240*580*1000mm
		350-550 lbs/h	750/815lbs	49*23*39 inch
ZLSP300C	22KW (3phase)	250-400 kg/h	425/465kg	1300*620*1100mm
		550-880 lbs/h	940/1025lbs	51*24*43 inch

PTO Pellet Mill for Farm

While the pellet mill for farm should be easy to move or portable, because the material is difficult to move. The PTO pellet mill is ideal choice for farmer to make biomass pellets on the farm. The PTO design is equipped with the Jack Shaft. When you want to combine it to tractor or truck, a different spine coupling will join with pellet mill. Then you can make pellets along with the running of tractor or truck. On the farm, you can not only harvest crop, but also make different kind of biomass pellets as fuel for heating, cooking or bedding materials for animals.

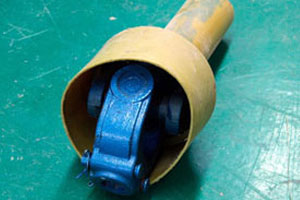

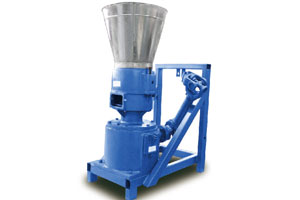

PTO Pellet Mill	PTO Shaft ( Used to connect tractor )

Technical Parameter

Model	Power	Capacity	Weight（NW/GW）	Packing Size
ZLSP120P	≥8 HP	40-80 kg/h	80/100 kg	900*540*900mm
		90-180 lbs/h	175/220 lbs	35*21*35inch
ZLSP150P	≥8 HP	50-100 kg/h	90/110 kg	900*540*1020mm
		110-220lbs/h	200/245 lbs	35*21*40inch
ZLSP200P	≥15HP	80-120 kg/h	130/150 kg	1000*540*1020mm
		180-265lbs/h	290/330 lbs	39*21*40inch
ZLSP230P	≥22HP	120-200kg/h	175/200 kg	1000*540*1020mm
		245-440lbs/h	385/440 lbs	39*21*40inch
ZLSP260P	≥30HP	160-250kg/h	235/260 kg	1050*540*900mm
		350-550lbs/h	518/580 lbs	41*21*35inch
ZLSP300P	≥55HP	250-400kg/h	305/330 kg	1100*540*1000mm
		550-880lbs/h	680/730 lbs	43*21*39inch

PTO Pellet Mill Used in Farm


Any question you have, you can ring us or send e-mail to get more information, we will provide you with the first service.
